Rectifier MR484000SG1-GS-BD
Peak Efficiency
>96.5%
Power Derating
FROM 45°c TO 75°c
Output power derating at
> 176VAC
High power density
Operating Voltage
85 to 290VAC
Output Voltage Range
20 to 58VDC
Maximum Capacity
4350W
Maximum Output Current
81.30A
Peak Efficiency
>96.5%
Dimension
41.5mm x 106.4mm x 291mm
Certification & Safety
UL62368-1; EN62368-1; IEC62368-1
Certification & Safety
EN55032 Class B
EN55035
IEC61000-3-11
IEC61000-3-12

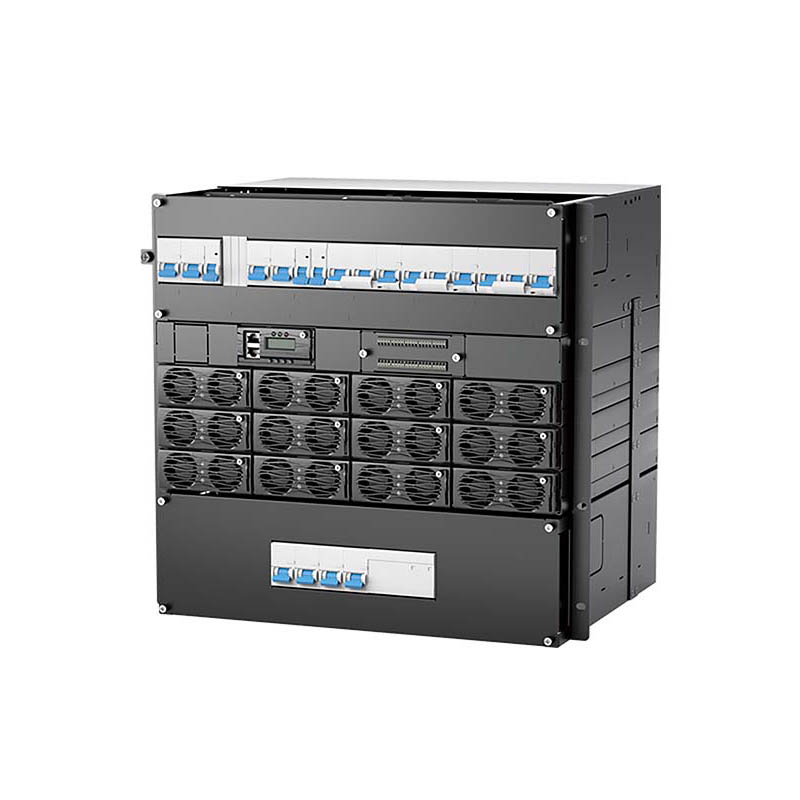

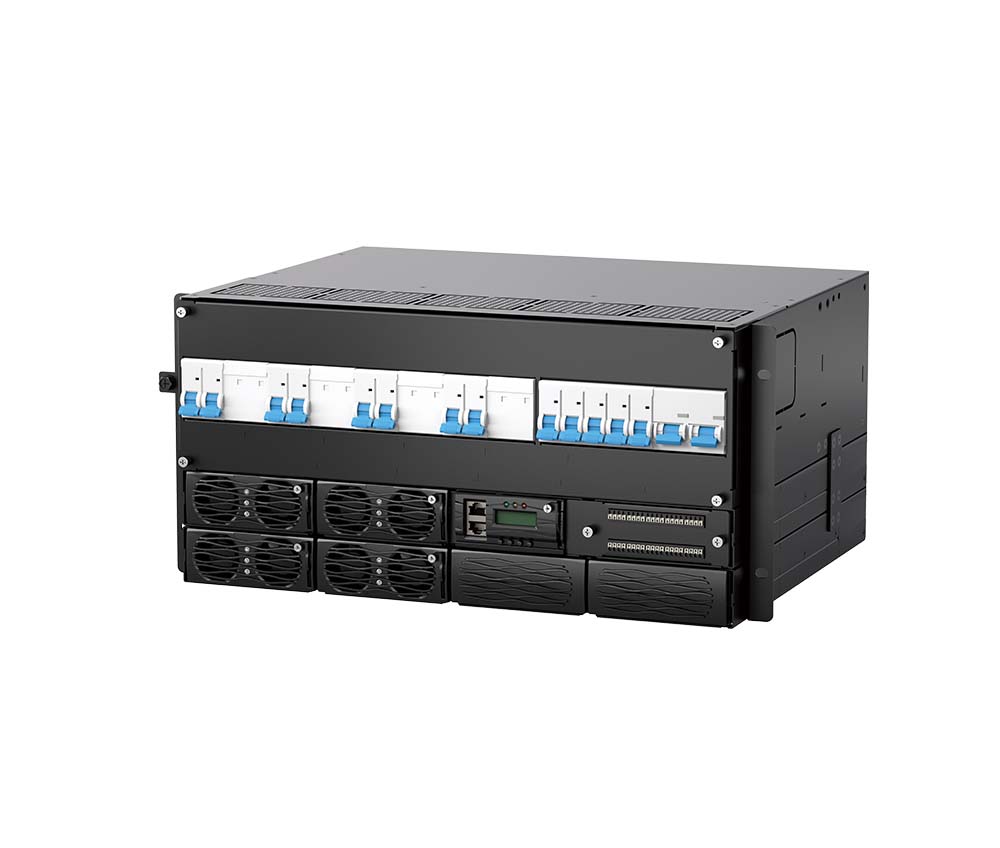

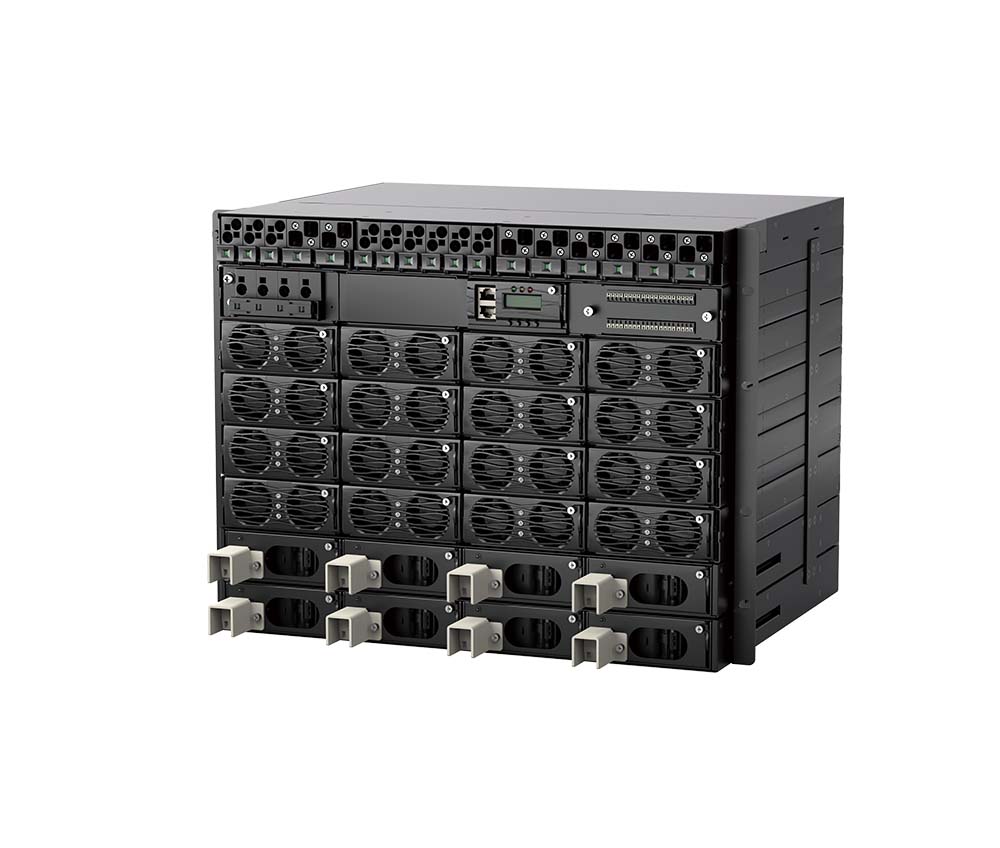

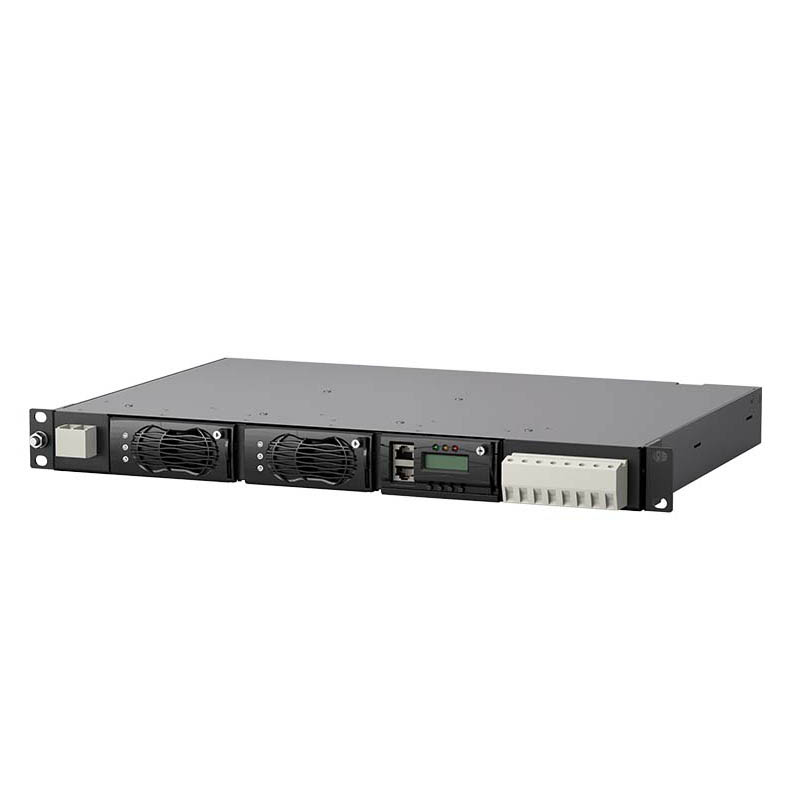

Embedded Subrack
Megmeet’s embedded power supply adopts a modular design and can be installed in a 19-inch or 23-inch rack. It is compatible with outdoor base station cabinets, outdoor computer rooms and so on, forming an indoor and outdoor DC integrated power supply system to fully meet customer needs.
